SucceBuy 150HP Hydraulic Outboard Steering Kit Boat Marine System, 20Ft Hose & Built-in Two-Way Lock Cylinder, Boat Accessories

[mobile_product_price_rating]

$630.68

SKU : d754f8l11png00akt2hg

Barcode : 141213

Download All

This is a trusted vendor as certified by our resident expert. You can expect high quality products as they are advertised with a great corridor of communication.

Trusted by Our Expert

SucceBuy 150HP Hydraulic Outboard Steering Kit Boat Marine System, 20Ft Hose & Built-in Two-Way Lock Cylinder, Boat Accessories

[product_price_rating]

$630.68

SKU : d754f8l11png00akt2hg

Barcode : 141213

(In Stock)

Quantity :

22 available

Add to Wishlist

Want to make a custom offer on this product? Click the button below for a step-by-step guide on how to do just that!

Make an Offer

Make an offer

Make An Offer:

ID
Email
Title
User
Url

This item is sold: Where is. As is

Terms of Sale

Enter the amount you wish to offer and click the “Make an offer” button.
If your offer for the product is acceptable a pop-up will appear. Click “Continue”to add the product to your cart at your offered price.
If you wish to withdraw an offer from a product then head to the product page, click on the “Make an Offer” button and then the “Remove offer” button.
Once the offer has been made and added to your cart, the vendor can accept, reject, or counter your offer.
If the vendors counter your offer, then you can bargain with the vendor directly to reach an agreed price for the product.

Payments :

Payments

Payments :

Contact Details

If you require further information, would like to arrange a viewing, or simply have some extra questions, then we’d love to hear from you! Do not hesitate to contact us at:

Virgin Islands St. Thomas

View phone number

View email

Enquire

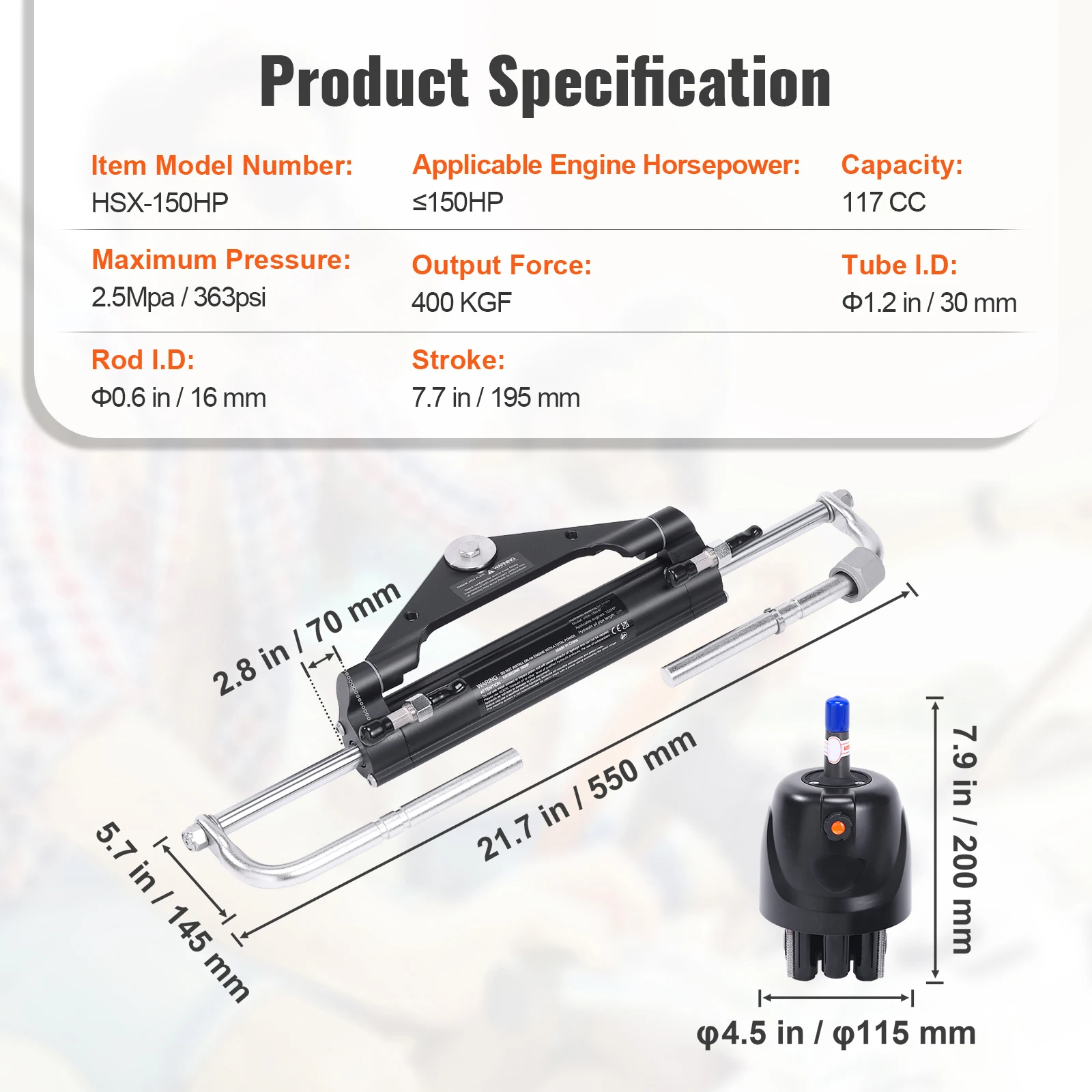

SPECIFICATIONS

Applicable Engine Horsepower: ≤150HP

Brand Name: SucceBuy

Capacity: 117 CC

Hign-concerned Chemical: None

Item Model Number: HSX-150HP

Maximum Pressure: 2.5Mpa / 363 psi

Origin: Mainland China

Output Force: 400 KGF

Rod I.D: 16 mm

Stroke: 7.7 in / 195 mm

Tube I.D: 30 mm

150HP Hydraulic Outboard Steering System Kit

Our kit enables the installation of a hydraulic steering system on engines up to 150HP. The rudder shaft features an aluminum alloy shell to withstand harsh marine environments. The hydraulic steering cylinder includes a two-way locking valve, bringing you high-end maritime quality.

Our boat hydraulic steering system features a detachable oil seal design, simplifying future inspections and maintenance. It ensures that performance declines due to aging or damaged oil seals can be easily avoided, keeping your system running smoothly and efficiently.

Our hydraulic steering for boats comes with 20 ft hoses, tailoring your system to perfection by cutting the hoses to meet your specific needs. Plus, with quick-fit 5/16" fittings, installation becomes a snap – fast, effortless, and designed for repeated use.

Our marine hydraulic steering kit provides everything you need for a seamless setup and maintenance experience. Inside, you'll find a hydraulic steering cylinder, a hydraulic pump, two 20-foot hydraulic hoses, and a comprehensive accessory kit for all your installation needs.

Before using our outboard hydraulic steering kit, it is necessary to fill it with oil and purge any air. If performance decreases or response delays, check the hydraulic fluid and conduct an air purge. We highly recommend consulting and following the user manual.

Features & Details

150 HP Hydraulic Steering Kit: Our 150 HP boat hydraulic steering system includes a hydraulic steering cylinder, a low-friction hydraulic pump, two 20ft high-pressure hoses, and a complete set of accessories. It's the perfect replacement for aging or damaged hydraulic steering systems. Enjoy unmatched control and stability on your maritime journeys！
Two-Way Locking Valve: Our advanced hydraulic pump features a built-in dual-directional valve, replaceable shaft seals, a relief valve, and an air pocket. This not only enhances reliability, security, and durability but also reduces long-term operational and maintenance costs while optimizing overall system efficiency and performance. Upgrade now for peace of mind on your maritime adventures.

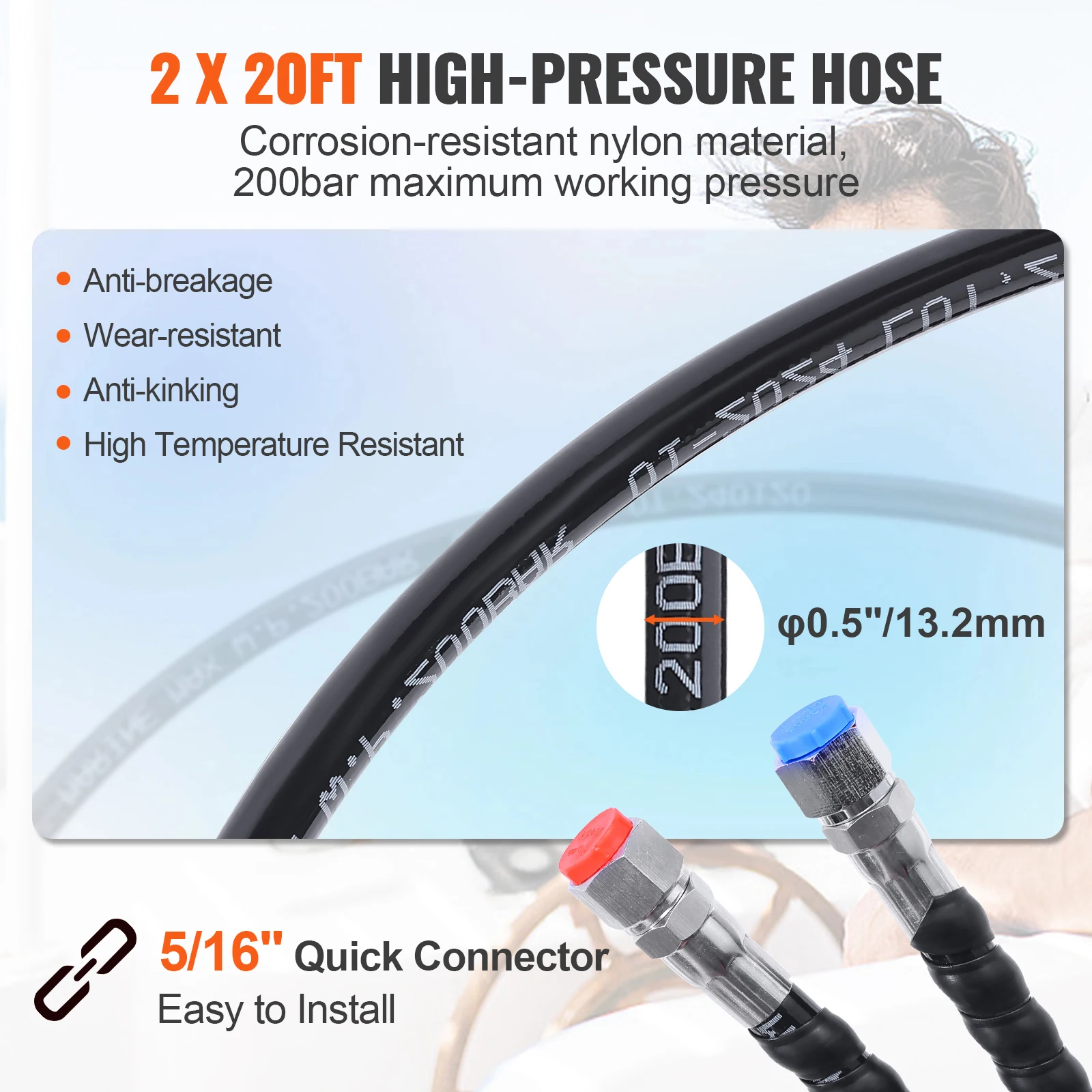

2x20FT Hydraulic Hoses: With a maximum working pressure of 200 bar and reinforced with thick nylon tubing, our hydraulic hoses are built to withstand heavy loads without risking rupture or leakage, ensuring swift and dependable response to every steering maneuver. Equipped with quick-fit 5/16" fittings, these hoses offer effortless installation flexibility across various vessel types. Dominate the waters with precision and ease.

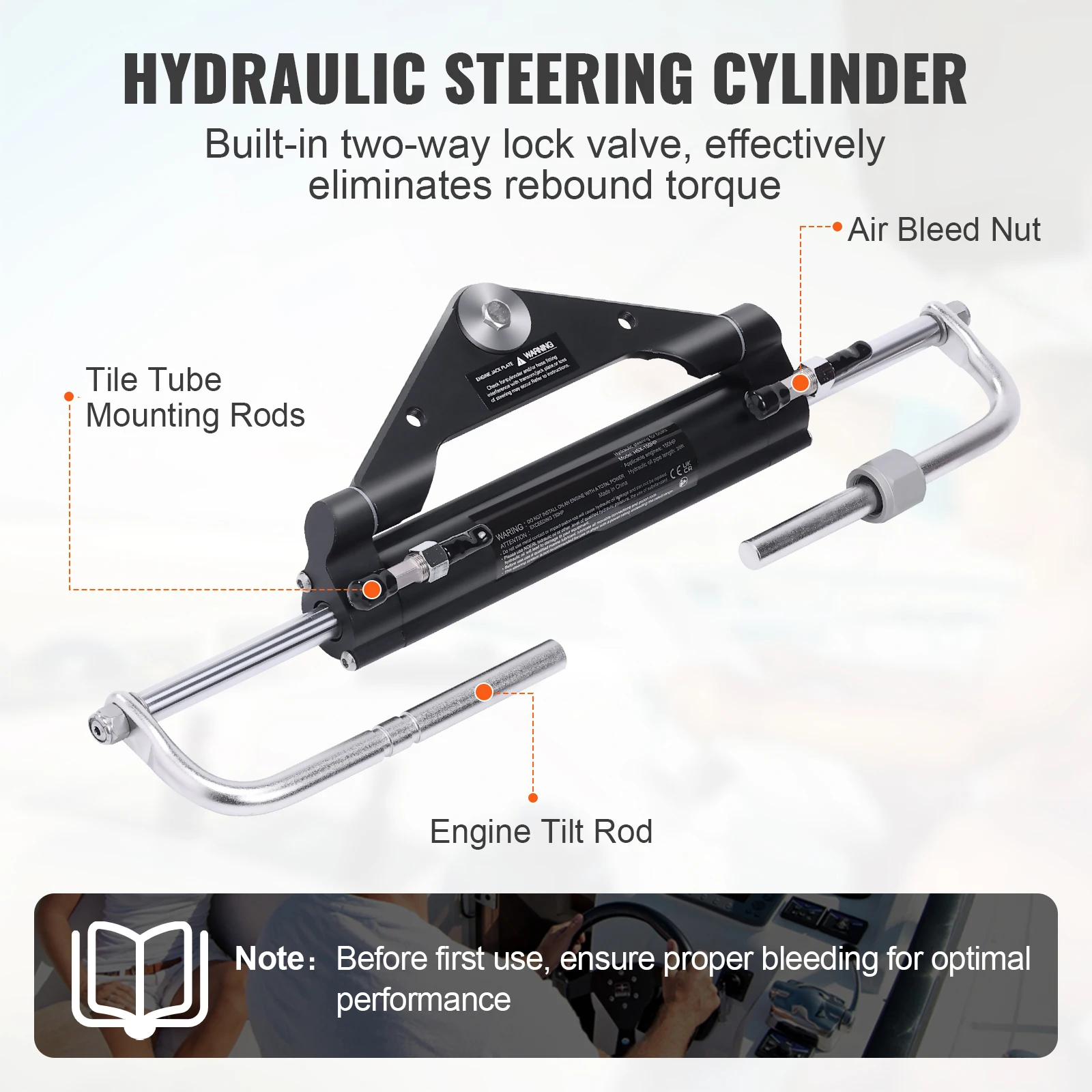

High-Performance Steering Cylinder: Our hydraulic steering cylinder boasts an impressive output force of 400kgf and is perfect for most splash wells, ensuring optimal engine operation without space constraints. Its sturdy structure and efficient seals allow it to withstand harsh environments with ease. Gear up for precise steering control and durability that stands the test of time.

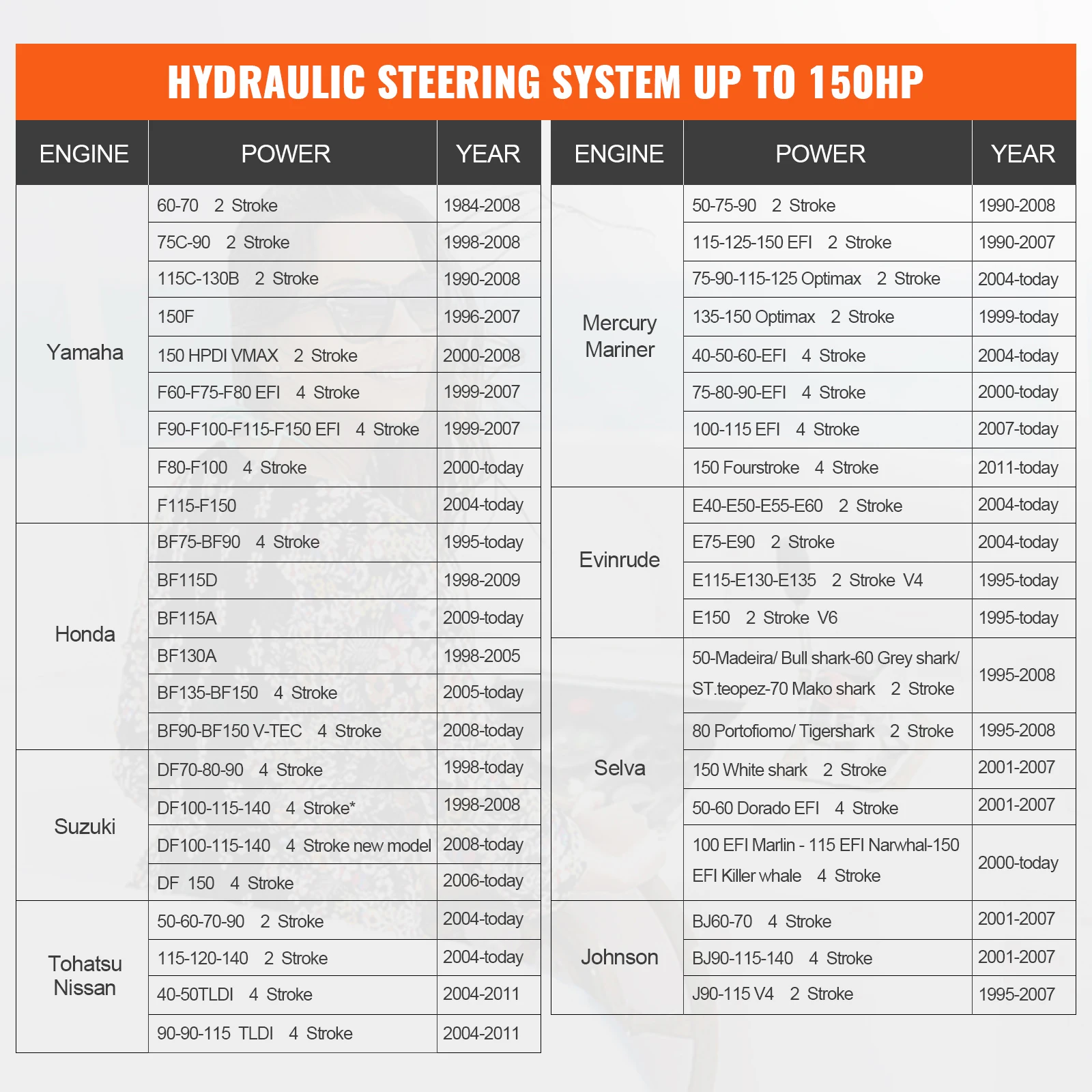

Engineered for Versatility: Our marine hydraulic steering system is compatible with outboard motors up to 150HP and seamlessly integrates with a range of top brands, including Yamaha, Suzuki, Honda, Mercury, Nissan, and Tohatsu. Our outboard hydraulic steering kit ensures smooth and precise steering control for an exceptional boating experience.

Shipping Details

Take advantage of our exclusive shipping discounts now. Fill in the form below to get the best shipping quote.

Name*
First Last
Phone
Email*
Transport From
Transport To
Shipping Date
From
Date Format: MM slash DD slash YYYY
To
Date Format: MM slash DD slash YYYY
Shipping Product
Make
Model
Vessel Name
CAPTCHA
Comments
This field is for validation purposes and should be left unchanged.

Reviews

There are no reviews yet.

Be the first to review “SucceBuy 150HP Hydraulic Outboard Steering Kit Boat Marine System, 20Ft Hose & Built-in Two-Way Lock Cylinder, Boat Accessories”
