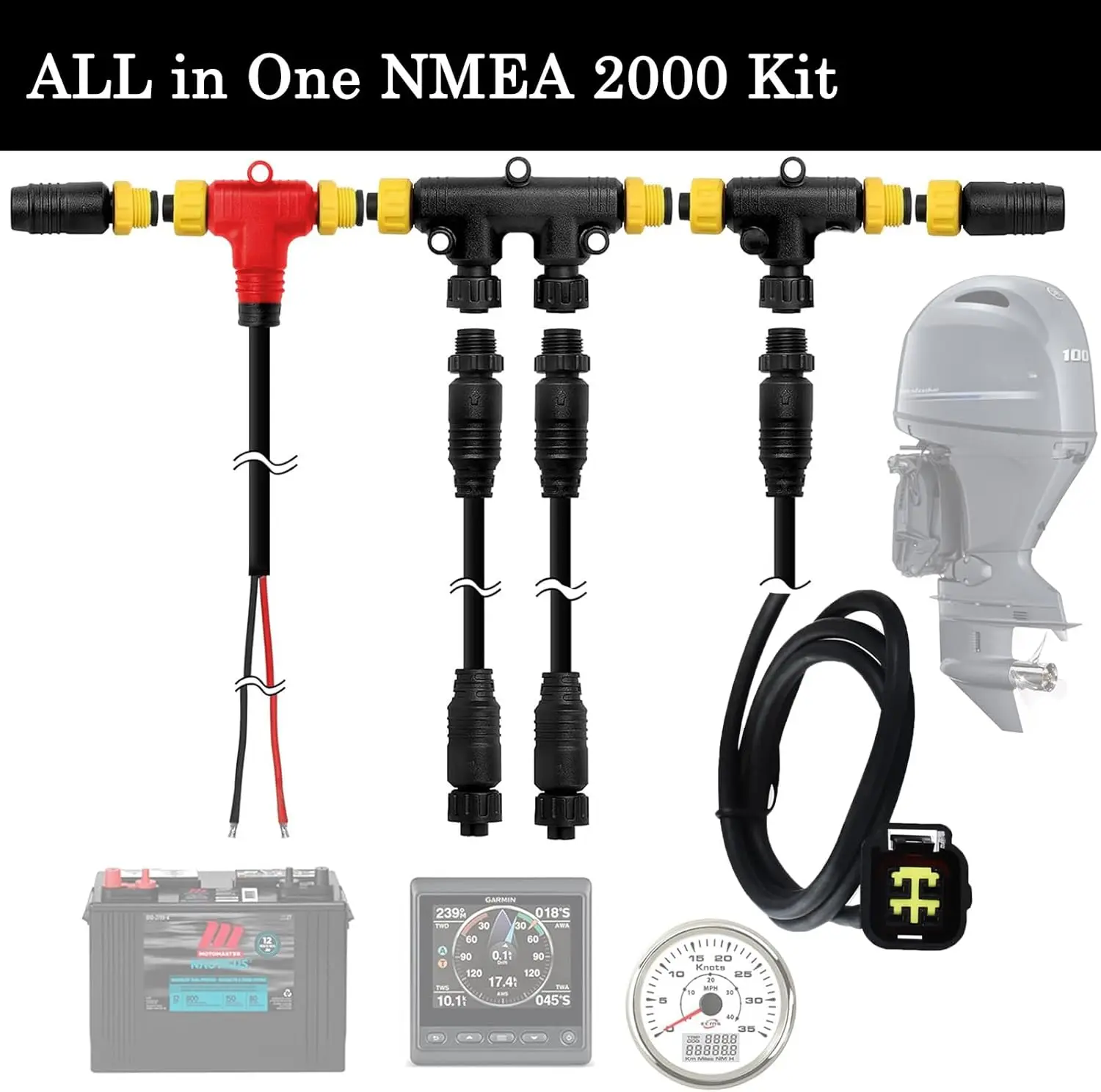

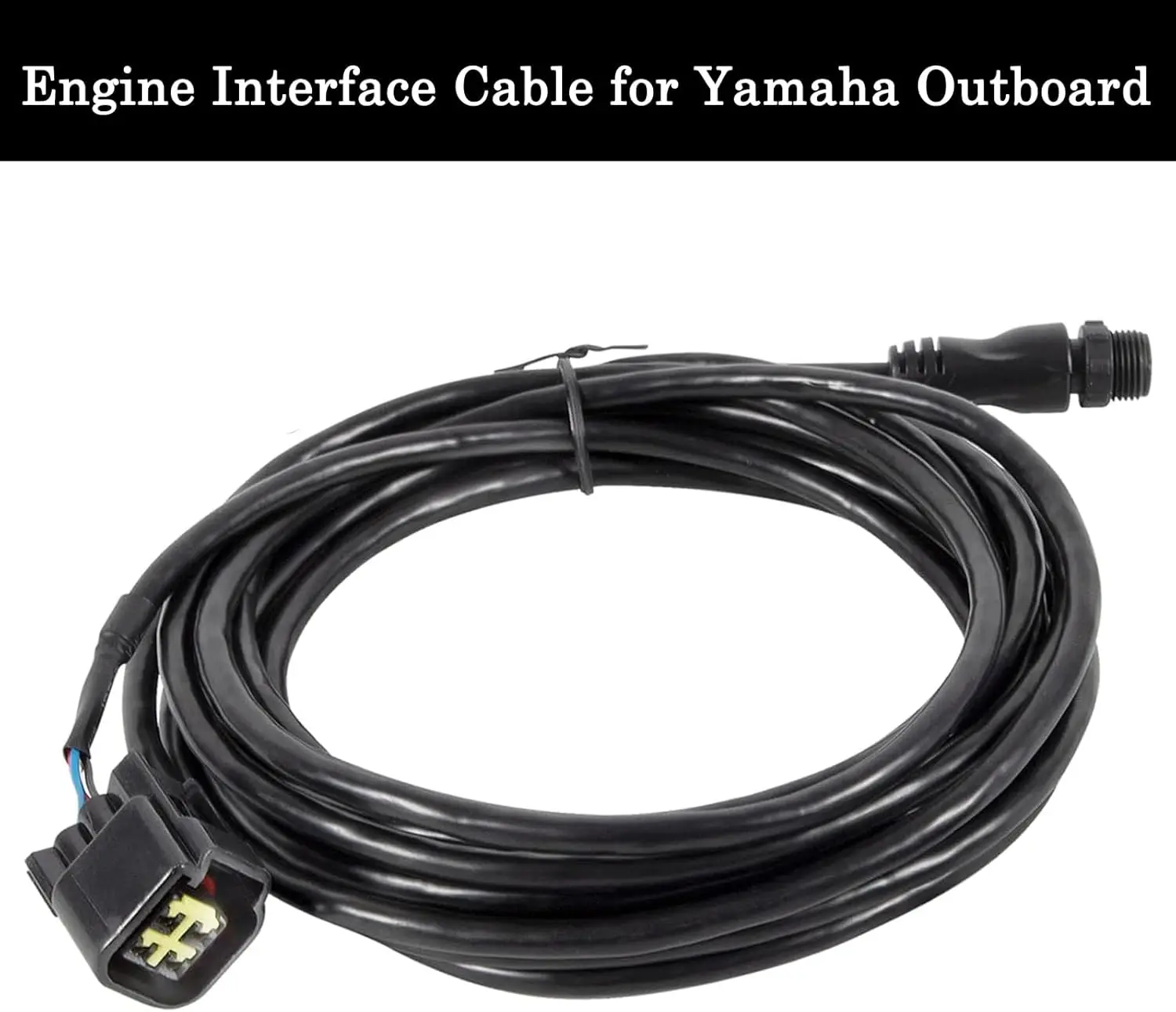

NMEA 2000 Starter Kit and Engine Interface Cable for Yamaha Outboard Engine 2006-2023 Bundle, Dual Tees Kits Terminators Marine
SPECIFICATIONS
Battery Included: No
Brand Name: NONE
High-concerned chemical: None
Origin: Mainland China
About this item
Easily connect additional displays, sensors or other devices to your NMEA 2000 (N2K) backbone cable.
Technical Data:
Insulation Resistance; DC500V+- 10%, test for 1 minute and the insulation resistance should be more than 100 MQ
Durability; 4000 cycles insertion/extraction cycles at a maximum rate of 2000 cycles per hour.
Waterproof test (IP67) Submersion in water, 1 meter for 24 hours.
Question:What do i need to connect my new 2021 yamaha fsh 190 sport engine controls with my new garmin echomap uhd 93sv?
Answer:If your engine uses NMEA 2000 to talk to your gauges, you need a tee and a cable. Don't forget to put the resister at the end of the tee
Question:Does the t connector come with the termination resistor ?

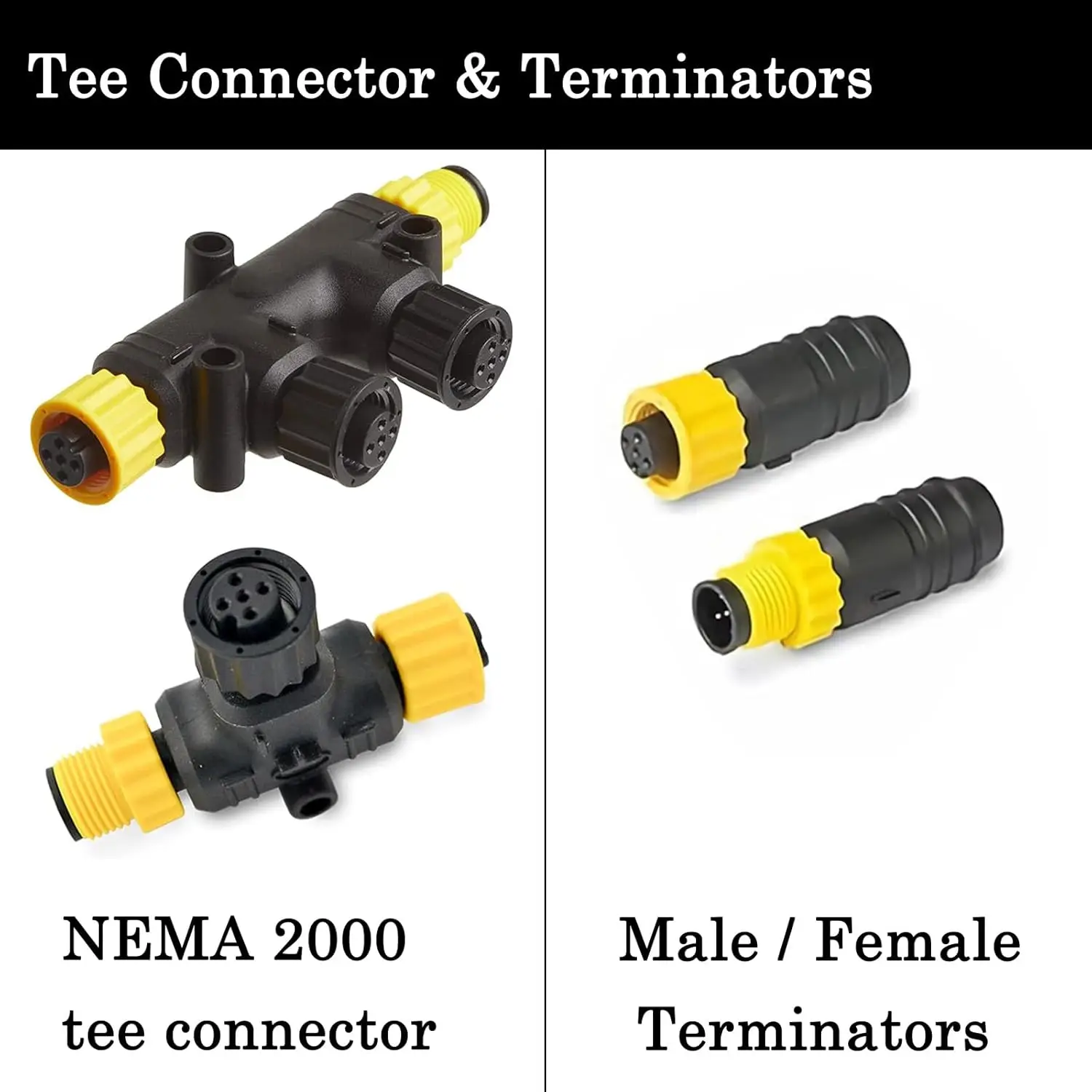

Answer:The single t-connector is designed to connect a power cable or a drop cable, from a sensor or display, to the NMEA 2000 backbone. A terminator is required at each end of the backbone.
Question:Can the backbone be connected to the side connector or does it have to be connected to the end connector?
Answer:The T-connector is designed to connect a drop cable to the backbone. The drop cable goes to a display or sensor. The backbone may continue from the other side of the T, or could end with a terminator.
Question:Can I use this connector to use two transducers at the same time? On for downscan and one for traditional sonar?

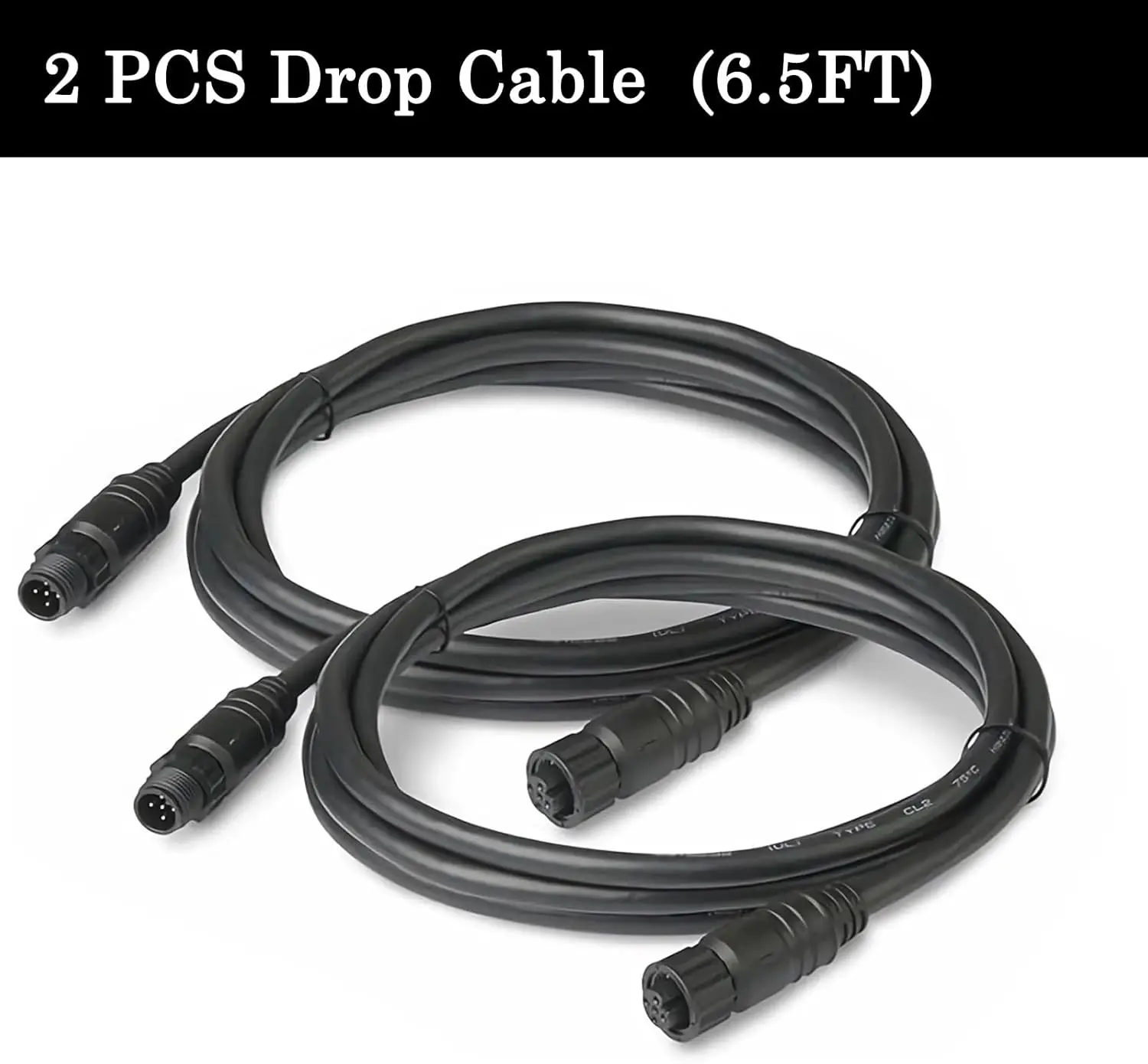

Answer:Each T-Connector allows one drop cable (connected to a transducer, display or sensor) to connect to the backbone cable.
The data from each of your transducers will then be available for display.
Question:Are those male and female type terminal ends on there. How many are female vs male thanks?
Answer:For connection to the backbone cables, one side of the T is male, the opposite side is female. The top of the T that connects to a drop cable is female.
Question:Can I use this for my suzuki backbone to connect to my garmin?
Answer:If your Suzuki backbone is NMEA 2000 (5 pin) and your Garmin has a NMEA 2000 (5 pin) socket. The Regatta Processing tee-connector can be used, with an appropriate length drop cable, to make the connection.
Question:Is this for power connection to multiple head units?

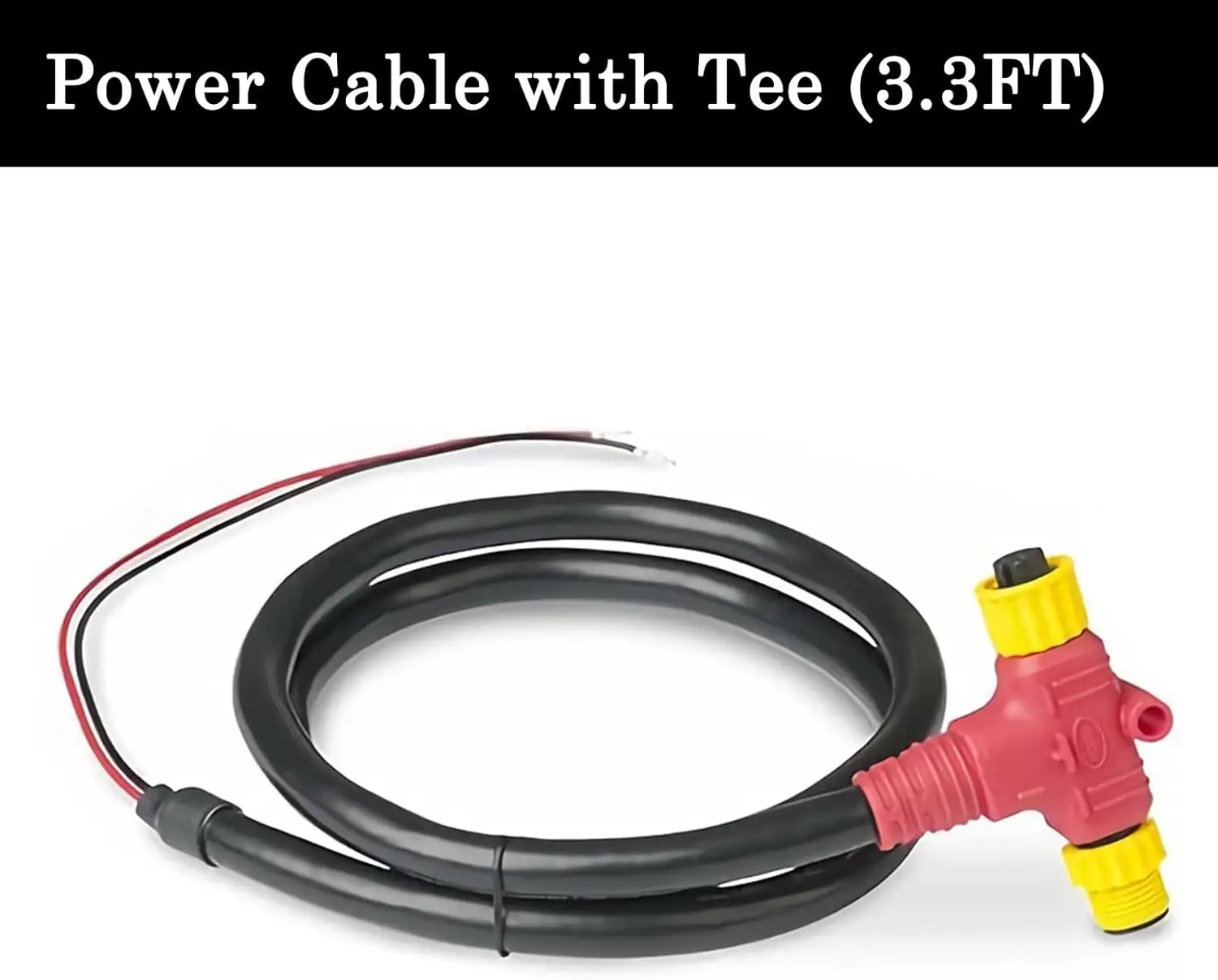

Answer:It's simply a tee for connecting devices to your network. You could use it to connect power to your network if that is what you want to do but it can be used for either purpose.
