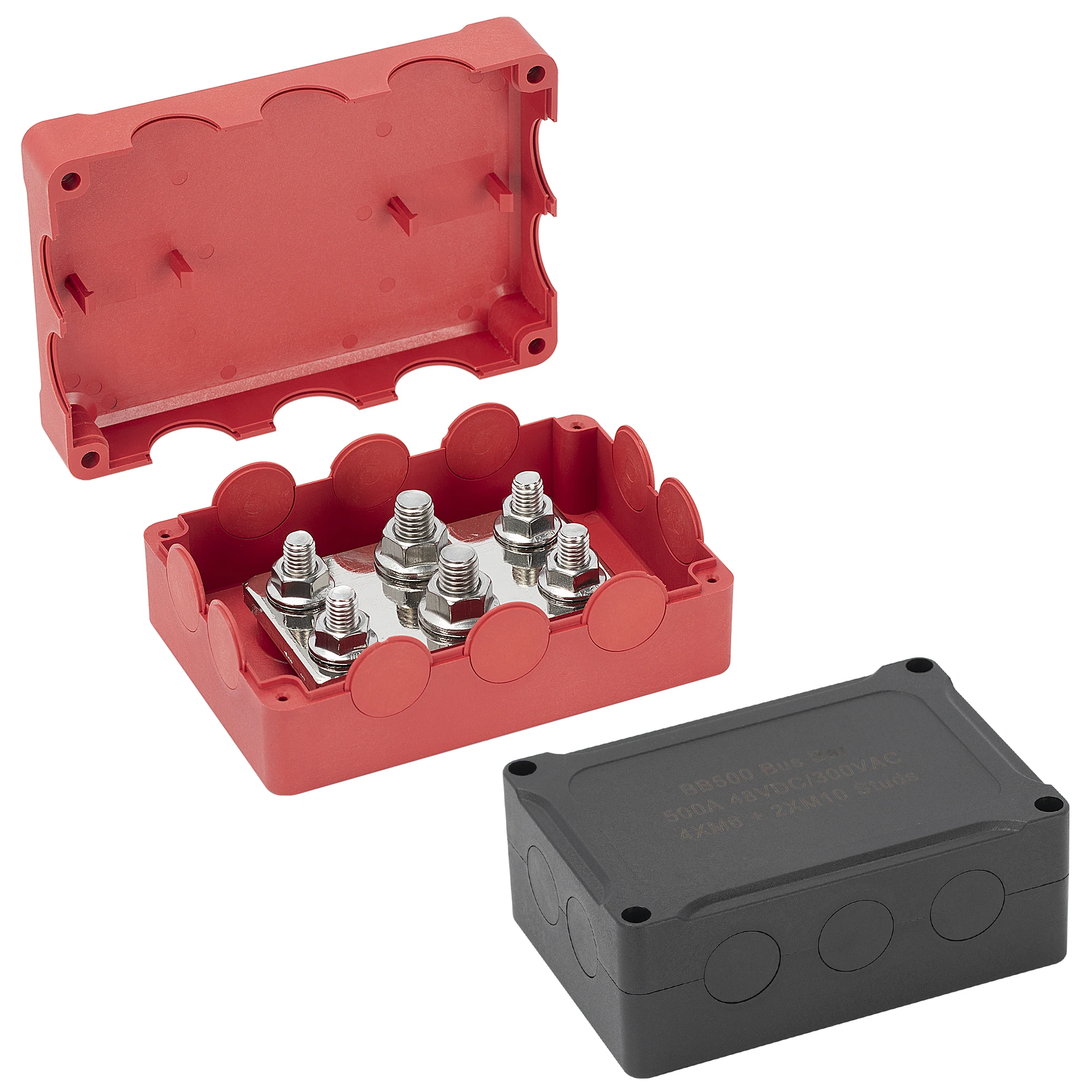

500A Bus Bar Waterproof Power Distribution Block with 2*5/16" 2*3/8" Studs 48V DC Automotive Marine Battery Terminal Block

[mobile_product_price_rating]

$83.95

SKU : d74ic13miq7000deg990

Barcode : 135425

Download All

This is a trusted vendor as certified by our resident expert. You can expect high quality products as they are advertised with a great corridor of communication.

Trusted by Our Expert

500A Bus Bar Waterproof Power Distribution Block with 2*5/16" 2*3/8" Studs 48V DC Automotive Marine Battery Terminal Block

[product_price_rating]

$83.95

SKU : d74ic13miq7000deg990

Barcode : 135425

(In Stock)

Quantity :

9 available

Add to Wishlist

Want to make a custom offer on this product? Click the button below for a step-by-step guide on how to do just that!

Make an Offer

Make an offer

Make An Offer:

ID
Email
Title
User
Url

This item is sold: Where is. As is

Terms of Sale

Enter the amount you wish to offer and click the “Make an offer” button.
If your offer for the product is acceptable a pop-up will appear. Click “Continue”to add the product to your cart at your offered price.
If you wish to withdraw an offer from a product then head to the product page, click on the “Make an Offer” button and then the “Remove offer” button.
Once the offer has been made and added to your cart, the vendor can accept, reject, or counter your offer.
If the vendors counter your offer, then you can bargain with the vendor directly to reach an agreed price for the product.

Payments :

Payments

Payments :

Contact Details

If you require further information, would like to arrange a viewing, or simply have some extra questions, then we’d love to hear from you! Do not hesitate to contact us at:

Virgin Islands St. Thomas

View phone number

View email

Enquire

SPECIFICATIONS

Brand Name: Daiertek

Color: Black and Red

Conductor Size: 12-28AWG

Item: 500A Marine Bus Bar

Item Weight: 0.65

Material: Nickel Plated Brass

Material of terminal: 6mm Pure Copper

Model Name: BB500-T6M8X4M10X2-RB

Mounting Holes Accepts: Accepts #10 (M5) Screws

Number of Contacts: 1 – 10

Number of Terminal Studs: 4

Origin: Mainland China

Rated Current: 120A

Rating: 500A 300V AC/48V DC

Special Features: 6mm Pure Copper

Terminal Type: 3/8” (M10) Stud

Type: Power Distribution Block

Year: 2023 Year

Heavy Duty 500A Bus Bar Waterproof Power Distribution Block with 2*5/16"(M8)+2*3/8"(M10) Studs 48V DC Automotive Marine Battery Terminal distribution Block with Cover – Negative&Positive

About this item

500A Heavy Duty – The 12V Bus Bar Box Rated 500A, besides, this power bus bar Junction block can work with MAX 48V DC & 300V AC.

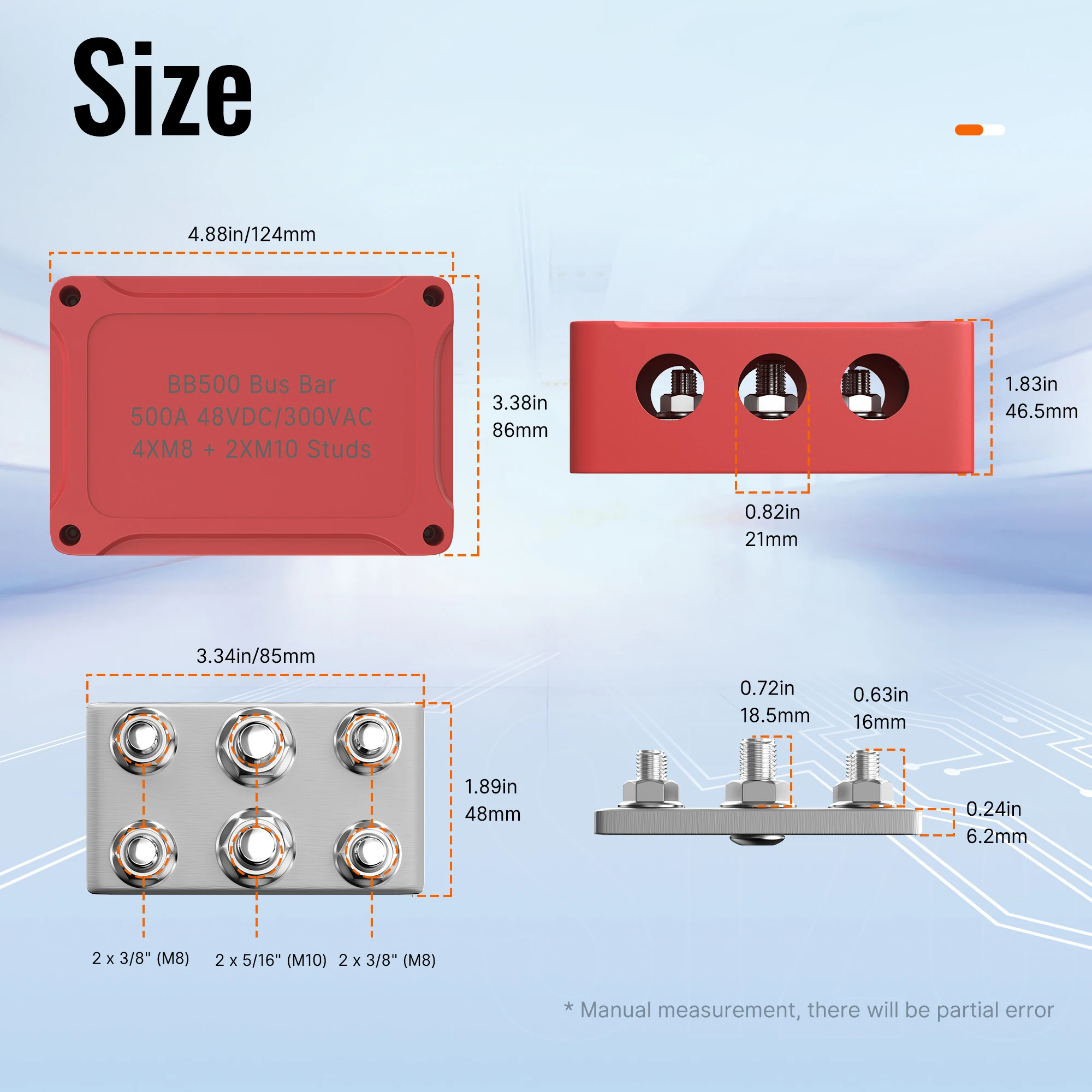

Material – The Bus Bar Terminal Block with 5.4" x 2.7" x 1.8" Outer Size, Copper Nickel Plated Plate with Stainless Steel Studs and Nuts. Red Positive Busbar and Black Negative(Ground) Busbar as a pair.

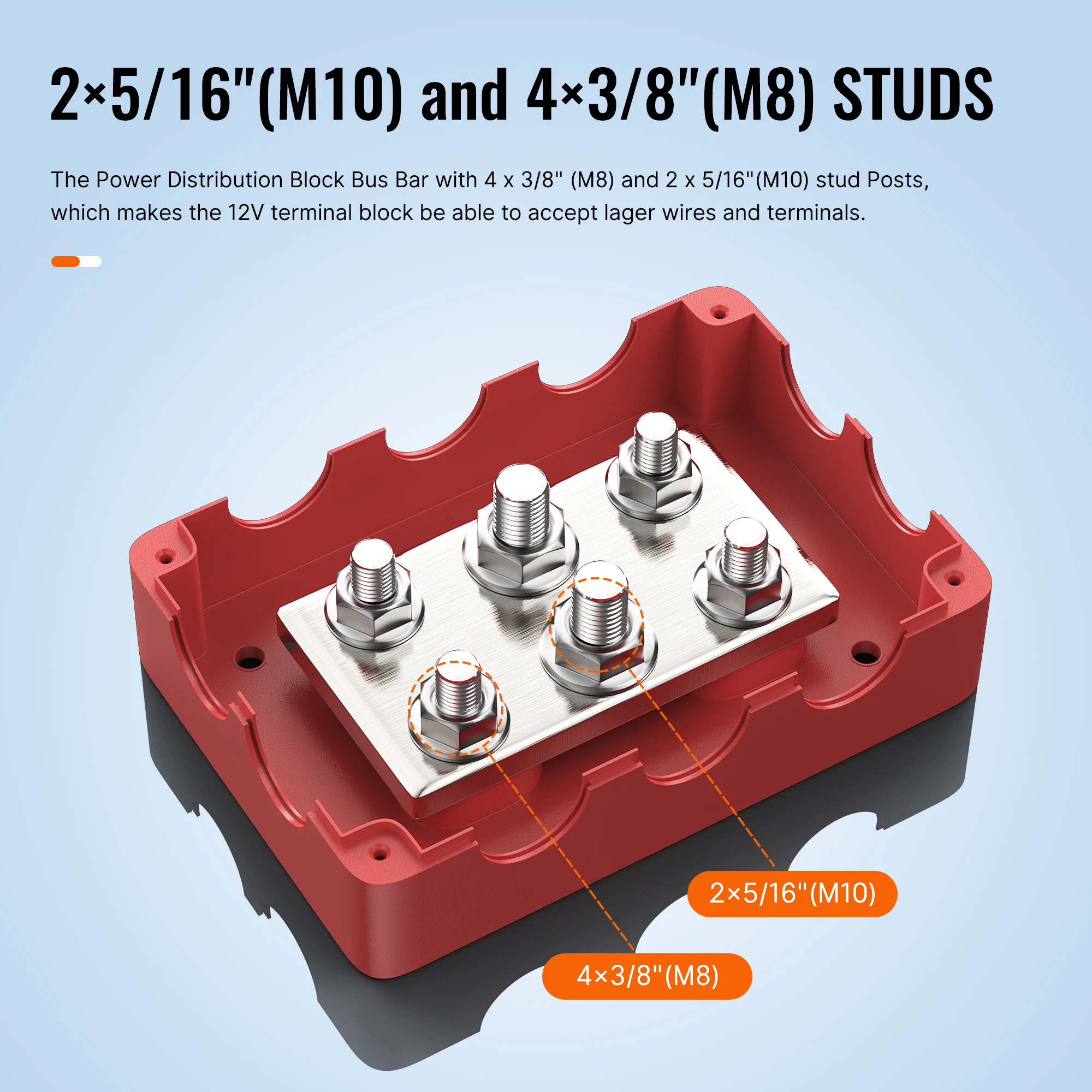

3/8"&5/16" Studs – The Power Distribution Block Bus Bar with 2 x 3/8" (M10) and 4 x 5/16"(M8) stud posts, which makes the 12V terminal block be able to accept 4/0 Gauge wires and terminals. The size of the terminal can be selected, which is more convenient.
Waterproof – The 500Amp junction block box comes with waterproof rings, which can act as a sealing function, so it makes your wiring more secure and reliable. This set of red and black busbar also comes with removable plates, it let the wires&terminals go through very easy and prevent short circuit.
Wide Application – The 500A Heavy Duty Bus Bar makes the wiring of circuit become neat and tidy and prevent electric short circuit, suitable for automotive, car, truck, marine, boat, RV, Solar, etc.

Automotive Power Distribution Block:

About The Item:

Battery bus bar terminal block with 6 removable plate design cover. 4*5/16"(M8)+2*3/8"(M10) Studs terminals busbar design, rated 500A when work with 48v dc supplier, and can work in max 48v dc power supplier circuit.

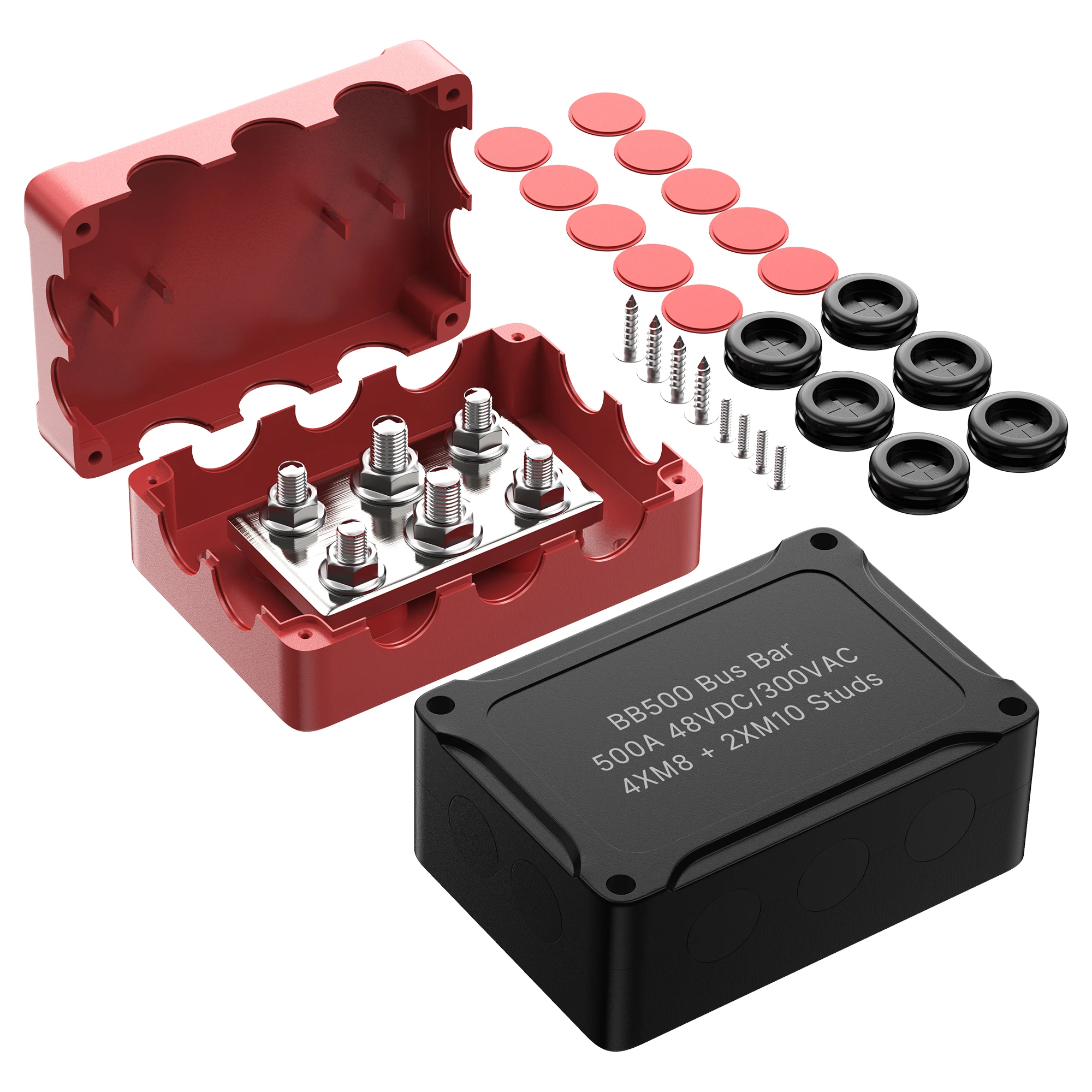

What is included:

1 x Positive Power Distribution Block

1 x Ground Power Distribution Block

12 x Waterproof Rings

8 x Assembling Screws

8 x Mounting Screws

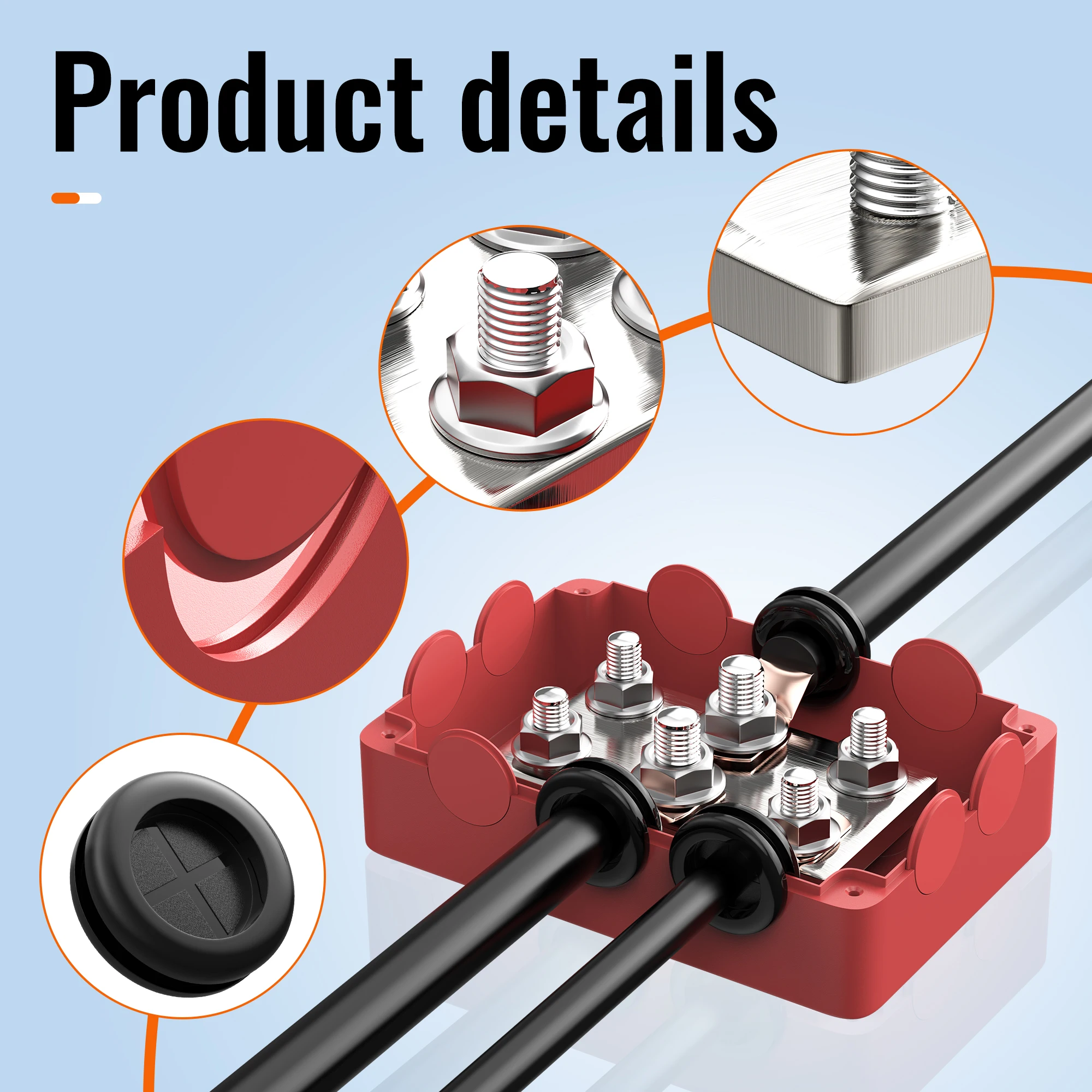

Product Details Display


Removable Plate Design Cover The cover of this power bus bar box is removable plate design, remove the plate from cover for wiring, or keep the plate on cover to shelter the exposed parts to prevent short circuit. The 500Amp junction block box also comes with waterproof rings, which can act as a sealing function, which makes your wiring is more secure and reliable.	4×5/16"(M8)+2×3/8"(M10) Studs The Power Distribution Block Bus Bar comes with 2 x 3/8" (M10) and 4 x 5/16"(M8) stud Posts, which makes the 12V terminal block be able to accept 4/0 Gauge wires and terminals. The size of the terminal can be selected, more convenient. can allow max 500A current pass through the battery terminal block.	500A 48V Design The thickness and wideness of the copper contact of this battery terminal block makes it can work under 500A current with 12v/48v power supplier, and can handle max 48v dc circuit.
